DDD specialise in precise fabrication for art and craft projects. Our complete end-to-end laser cut service includes material supply, custom drawings, laser cutting, and direct delivery to your door. With transparent pricing based on laser cut time, you’ll receive fair quotes with no hidden fees. Don’t worry if you’re not familiar with laser cutting—our dedicated team is here to help guide you every step of the way.

Order Process

  • 1. Send File

    Submit your laser cut file and contact information via the Google Form / Button below.

  • 2. Quotation

    DDD Team will contact you to confirm the file, material(s) and provide a quotation and estimate lead time.

  • 3. Laser cut

    Team DDD will proceed with the laser cut upon receiving the payment.

  • 4. Delivery

    The fabricated material(s) will arrive to you based on your selected delivery method during checkout.
Quote Now

Types

  • Cut

  • Engrave

  • Fill Engrave

Pricing

Minimum Charge (HKD) - 30 minutes included Charge per minute afterwards (HKD/min)
250 8
Self Brought Material Test Fee (HKD/material)
100

File Format

File Name format:

e.g. 56121262_MDF_5mm_600x900mm_2

[Phone Number]_[Material]_[Thickness]_[Dimension]_[Total Quantity]



File format:

dxf (2004 natural)

File Name format:

Layer 1 | (Red, #FF0000) | "Cut"

Layer 2 | (Green, #00FF00) | "Engrave"

Layer 3 | (Cayan, #00FFFF) | "Fill Engrave"

Layer 4 | (Blue, #0000FF) | "Frame"

*Layer 4 is for referencing the selected material dimension only, objects on this layer will not be fabricated, maximum bed size is 600x900mm, please refer to the dimension provided on our material list.



Content standard:

  1. Save all graphics that use the same material into ONE file
  2. Units must be in millimeters (mm)
  3. All graphics must be flattened (on to the same plane, i.e. XY plane)
  4. Make sure there is no overlap lines (i.e. 'make2D' in Rhino; 'explode' -> 'overkill' in AutoCAD)
  5. Move the graphics as close to origin (x,y,z = 0,0,0) as possible
  6. Join the curves or lines in their respective layers
  7. If the text object within the file is intended for laser cut, please turn it into curve or line (i.e. 'explode' in Rhino; 'Modify Text' -> 'Explode' in AutoCAD)
  8. The maximum operable area is 600x900mm. Please draw the (Blue) "Frame" according to the material size, the "Frame" size must not exceed 600x900mm

Quote Now

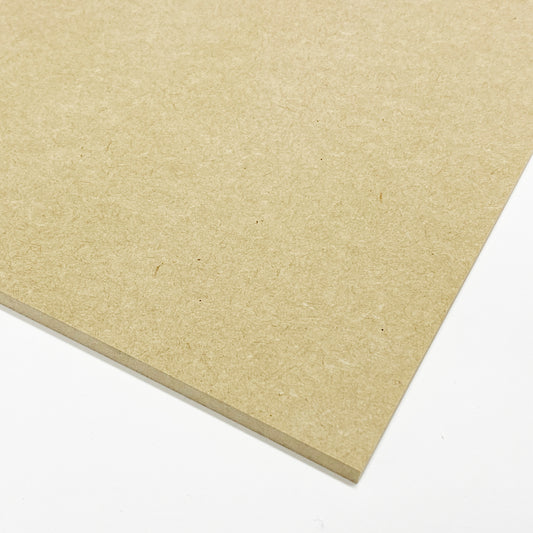

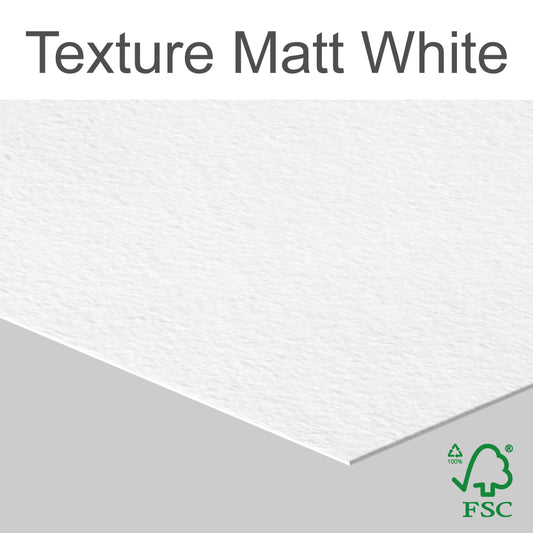

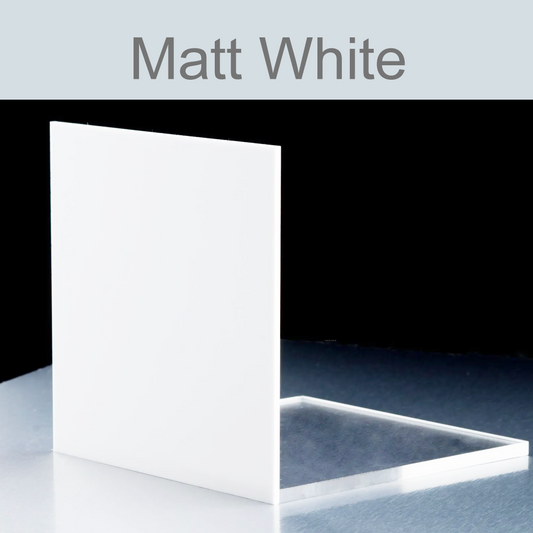

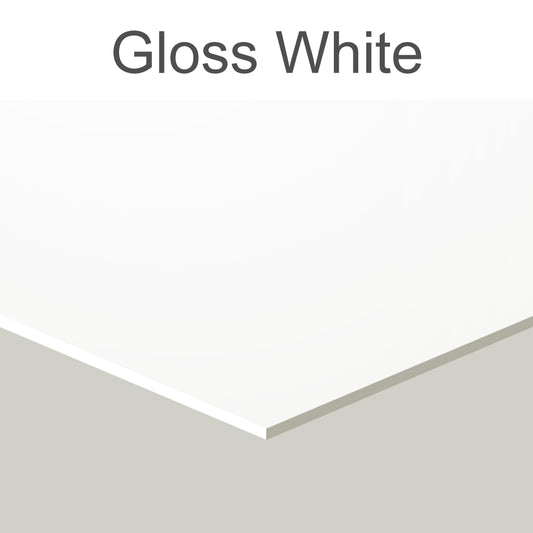

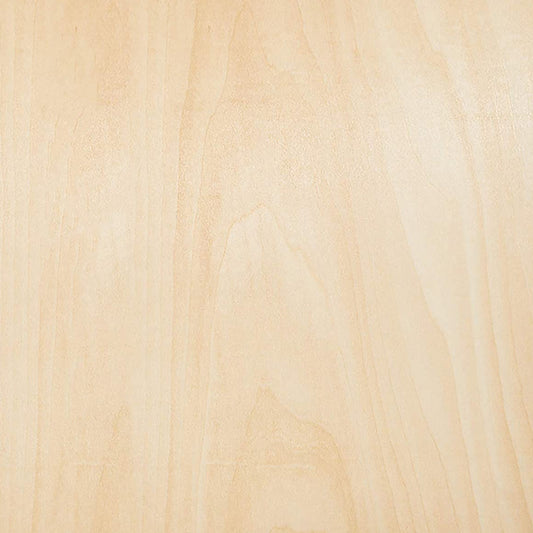

Available Material

DDD provides a wide range of material for designers to laser fabricate. The listed items below are the laser cut materials that DDD offers. If you would like to use your own material with our Laser Cut & Engrave Service, feel free to contact us anytime!

View all
